Learning Objectives

After completing this lesson, you’ll be able to:

• Remove unnecessary attributes to improve performance.
• Track down unnecessary lists and remove them.
• Improve performance by collapsing bookmarks to prevent excess caching.
• Use workspace templates including caches to measure performance improvements.

Resources

• Starting workspace
• Complete workspace

Exercise

You have been assigned to a project to calculate the "walkability" of each address in the city of Vancouver. Walkability is a measure of how easy it is to access local facilities on foot. The starting workspace calculates a walkability score based on a number of criteria.

In this exercise, we will modify our workspace to improve its performance.

1) Start Workbench

Start FME Workbench (2022.0 or later) and open the starting workspace. Run it to create feature caches while you complete step #2.

2) Examine Workspace

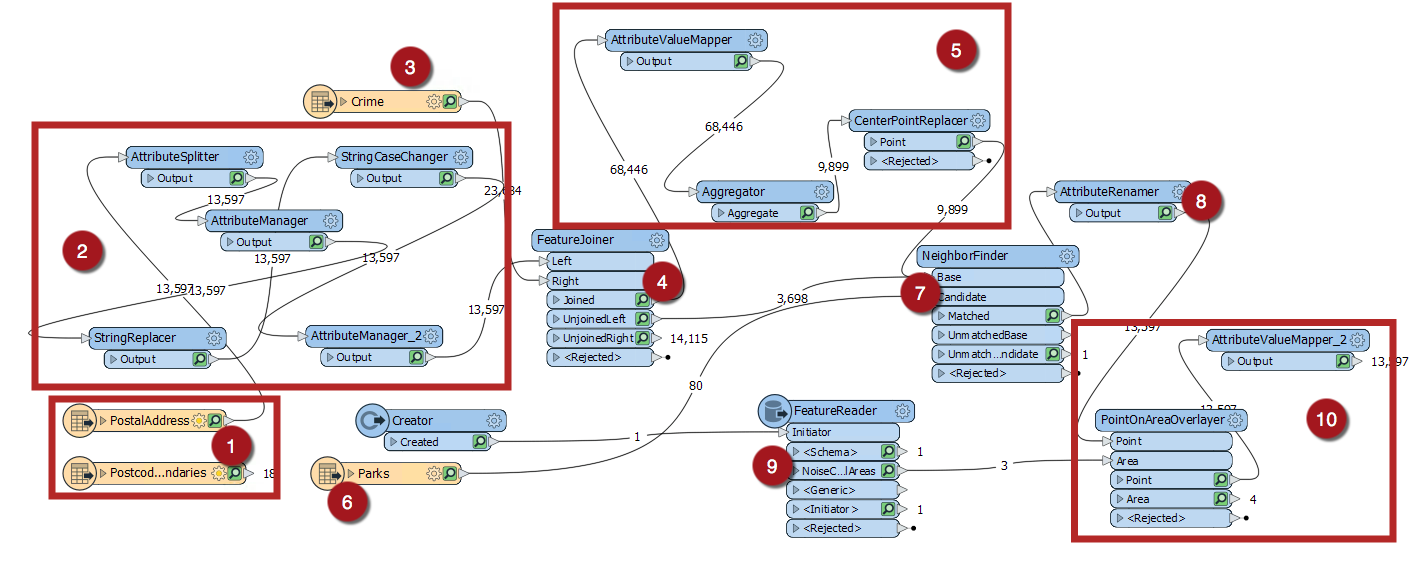

The workspace is pretty unorganized. Let’s examine it in sections to figure out how it works.

1. PostalAddress and PostcodeBoundaries read from Addresses.gdb.
2. Transformers clean up attributes from the PostalAddress feature type to create a separate Number and Street attribute. Then the last two digits of the Number are being replaced by XX to create an attribute that will be the Join Key for joining the crime data.
3. Crime reads from Crime.csv. This dataset stores the street number for each crime incident with XX as the last two digits to protect anonymity.
4. The FeatureJoiner joins PostalAddress and the Crime data based on the Join Key attribute from section two and the Block attribute from Crime.
5. These transformers give the crime Type attribute a number based on severity and then calculate the total CrimeValue for each address block. Then the CenterPointReplacer extracts only one point if there are multiple crime incidents in the same location.
6. The workspace reads the Parks MapInfo TAB file. It will use this data to measure the walking distance from addresses to parks.
7. The NeighborFinder determines the park closest to each address.
8. The AttributeRenamer renames the _distance attribute from the NeighborFinder to ParkDistance.
9. The Creator and the FeatureReader read a Planning Restrictions OGC Geopackage, including noise restriction areas from the NoiseControlAreas layer.
10. The PointOnAreaOverlayer joins the point data containing the crime, distance to park, and addresses with the NoiseControlAreas polygons. This joined data assigns the noise restrictions to any overlapping points. The AttributeValueMapper is used to assign the zone with a score, creating the attribute NoiseZoneScore. This new attribute will reflect that addresses in noise-restricted areas are more walkable.

3) Determine Performance Improvements

Let's save the workspace as a template file. This step will let us measure how much data the workspace is storing in its caches. Once we make performance improvements, we can save the template again to compare the sizes and see how much we've improved performance.

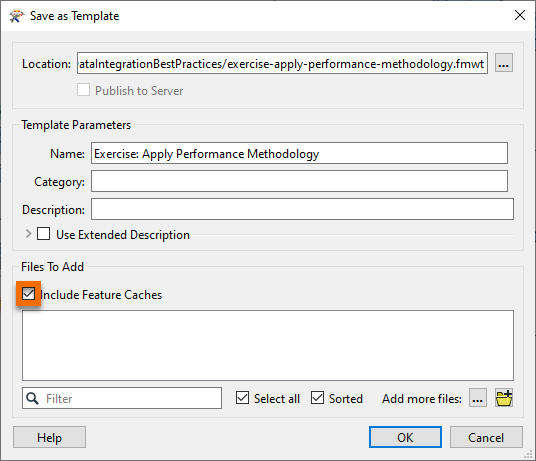

In the top menu go to File > Save As Template. You can save it to whatever location you wish. When prompted, be sure to have the Include Feature Caches option checked:

Now if we come back to this project later or share it, the user can reopen the template and have all our cached data ready for use.

Check the size of the template file that you just created. You'll see that it is around 60 MB in size, which is fairly large for a template. It's not a problem to have a large template file, but it does indicate a lot of data is being cached and that this could affect the workspace's performance.

Note the size of the template; you will need this value for a quiz question.

4) Remove Unnecessary Attributes

One aspect of data is the number of attributes and lists. Since there are a lot of additional attributes to remove but only a few we need to keep, we will use the AttributeKeeper transformer. Place the AttributeKeeper between the AttributeValueMapper_2 and the ExpressionEvaluator transformers:

Inspect the AttributeKeeper parameters and set them up to keep only CrimeValue, NoiseZoneScore, and PoolDistance. Take note of the names of the attributes that we are not keeping. We might be able to remove them earlier in the workspace.

5) Remove Lists

If you inspect a single feature in the Aggregator:Output port cache, you will see it stores a lot of attributes like CrimeList{}.City or CrimeList{}.Block. The final output of the workspace is a single score, so keeping all of these component attributes that were used to calculate the score is not necessary. These excess attributes clutter the display and inspecting the output becomes hard. These attributes can hardly be helping the performance of the workspace either - even if that's mitigated by using caches during development.

Check the parameters for the Aggregator transformer and turn off the Generate List parameter, to prevent the list from being created. This step will cause many caches to become stale, but we will re-run the workspace shortly to solve this.

6) Remove Extra Feature Types

Another reason a workspace is running slowly is if you are reading in extra data that is not being used. It looks like the original author read in the PostcodeBoundaries feature type from the Addresses.gdb. Additionally, they must have originally calculated walking distance to parks instead of pools, and they didn't remove the Parks feature type once we were done with it. Delete both of those now and click Yes on any warnings that pop up.

7) Collapse the Bookmark

Another source of excess caching is transformers producing output that we don't need to inspect. These can be prevented by hiding these transformers within a collapsed bookmark.

Add a bookmark around all of the transformers between the PostalAddress reader and the FeatureJoiner, by selecting all the transformers and pressing ctrl+B on your keyboard. Then name the bookmark Prepare Addresses to Join:

Now we can collapse the bookmark and then when we re-run the translation only the last transformer will have a cache. To collapse the bookmark, click on the arrow beside the bookmark name:

8) Run the Workspace

Now run the workspace by clicking on the ExpressionEvaluator and choosing Run to This or just click the run button.

The workspace will run and data will be cached, but for the collapsed bookmark, only one cache will be created for its five transformers. Attributes unnecessary to the output will also be removed by the AttributeKeeper.

Save the workspace as a new template and check the option to include caches. Check the file size of the new template. It should be considerably smaller. Note its size; you will need it to answer a quiz question!
